Tina5编译系统
编译固件
进入 sdk 源码根目录 t113-tin5-v1.2 ，执行以下指令，删除配置文件：
ubuntu@ubuntu1804:~$ cd t113-tin5-v1.2/
ubuntu@ubuntu1804:~/t113-tin5-v1.2$ rm .buildconfig
继续在当前路径下，执行指令，初始化环境变量，
ubuntu@ubuntu1804:~/t113-tin5-v1.2$ source build/envsetup.sh
NOTE: The SDK(/home/ubuntu/t113-tin5-v1.2) was successfully loaded
load openwrt... ok
Please run lunch next for openwrt.
load buildroot,bsp...ok
Invoke . build/quick.sh from your shell to add the following functions to your environment:
croot - Changes directory to the top of the tree
cbsp - Changes directory to the bsp
cbsptest - Changes directory to the bsptest
ckernel - Changes directory to the kernel
cbrandy - Changes directory to the brandy
cboot - Changes directory to the uboot
cbr - Changes directory to the buildroot
cchips - Changes directory to the board
cconfigs - Changes directory to the board's config
cbin - Changes directory to the board's bin
cdts - Changes directory to the kernel's dts
ckernelout - Changes directory to the kernel output
cout - Changes directory to the product's output
copenssl - Changes directory to the product's openssl-1.0.0
Usage: build.sh [args]
build.sh - default build all
build.sh bootloader - only build bootloader
build.sh kernel - only build kernel
build.sh buildroot_rootfs - only build buildroot
build.sh menuconfig - edit kernel menuconfig
build.sh saveconfig - save kernel menuconfig
build.sh recovery_menuconfig - edit recovery menuconfig
build.sh recovery_saveconfig - save recovery menuconfig
build.sh buildroot_menuconfig - edit buildroot menuconfig
build.sh buildroot_saveconfig - save buildroot menuconfig
build.sh clean - clean all
build.sh distclean - distclean all
build.sh pack - pack firmware
build.sh pack_debug - pack firmware with debug info output to card0
build.sh pack_secure - pack firmware with secureboot
Usage: pack [args]
pack - pack firmware
pack -d - pack firmware with debug info output to card0
pack -s - pack firmware with secureboot
pack -sd - pack firmware with secureboot and debug info output to card0

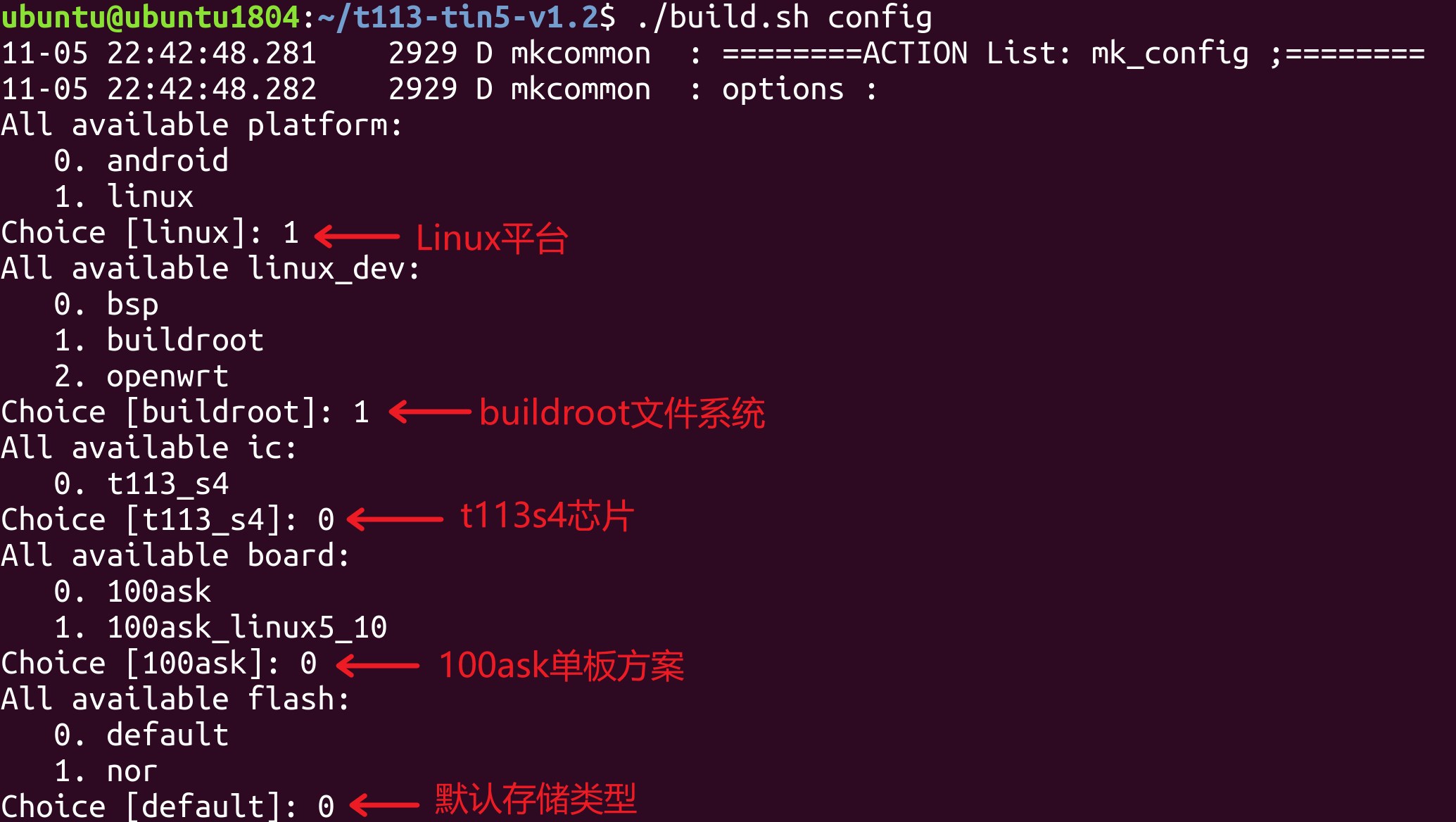

接着执行编译指令，首次编译需要我们选择相应的单板选项。如下：
ubuntu@ubuntu1804:~/t113-tin5-v1.2$ ./build.sh config
11-05 22:42:48.281 2929 D mkcommon : ========ACTION List: mk_config ;========
11-05 22:42:48.282 2929 D mkcommon : options :
All available platform:
0. android
1. linux
Choice [linux]: 1
All available linux_dev:
0. bsp
1. buildroot
2. openwrt
Choice [buildroot]: 1
All available ic:
0. t113_s4
Choice [t113_s4]: 0
All available board:
0. 100ask
1. 100ask_linux5_10
Choice [100ask]: 0
All available flash:
0. default
1. nor
Choice [default]: 0
11-05 22:42:58.438 2929 I mkcommon : kernel relative recovery defconfig: ../../../../../device/config/chips/t113_s4/configs/100ask/linux-5.4/config-5.4-recovery
11-05 22:42:58.438 2929 I mkcommon : kernel absolute recovery defconfig: /home/ubuntu/t113-tin5-v1.2/device/config/chips/t113_s4/configs/100ask/linux-5.4/config-5.4-recovery
11-05 22:42:58.487 2929 I mkcommon : Prepare toolchain ...
11-05 22:42:58.494 2929 D mkcommon : Uncompressing '/home/ubuntu/t113-tin5-v1.2/prebuilt/kernelbuilt/arm/gcc-linaro-5.3.1-2016.05-x86_64_arm-linux-gnueabi.tar.xz' to '/home/ubuntu/t113-tin5-v1.2/out/toolchain/gcc-linaro-5.3.1-2016.05-x86_64_arm-linux-gnueabi' ...
11-05 22:43:14.850 2929 I mkcommon : kernel defconfig: generate /home/ubuntu/t113-tin5-v1.2/out/t113_s4/kernel/build/.config by /home/ubuntu/t113-tin5-v1.2/device/config/chips/t113_s4/configs/100ask/linux-5.4/config-5.4
11-05 22:43:14.851 2929 I mkcommon : Prepare toolchain ...
11-05 22:43:14.932 2929 D mkcommon : make: Entering directory '/home/ubuntu/t113-tin5-v1.2/kernel/linux-5.4'
11-05 22:43:14.934 2929 D mkcommon : make[1]: Entering directory '/home/ubuntu/t113-tin5-v1.2/out/t113_s4/kernel/build'
11-05 22:43:15.055 2929 D mkcommon : GEN Makefile
11-05 22:43:15.062 2929 D mkcommon : HOSTCC scripts/basic/fixdep
11-05 22:43:15.472 2929 D mkcommon : HOSTCC scripts/kconfig/conf.o
11-05 22:43:15.601 2929 D mkcommon : HOSTCC scripts/kconfig/confdata.o
11-05 22:43:15.842 2929 D mkcommon : HOSTCC scripts/kconfig/expr.o
11-05 22:43:16.017 2929 D mkcommon : LEX scripts/kconfig/lexer.lex.c
11-05 22:43:16.040 2929 D mkcommon : YACC scripts/kconfig/parser.tab.[ch]
11-05 22:43:16.080 2929 D mkcommon : HOSTCC scripts/kconfig/lexer.lex.o
11-05 22:43:16.247 2929 D mkcommon : HOSTCC scripts/kconfig/parser.tab.o
11-05 22:43:16.562 2929 D mkcommon : HOSTCC scripts/kconfig/preprocess.o
11-05 22:43:16.662 2929 D mkcommon : HOSTCC scripts/kconfig/symbol.o
11-05 22:43:16.931 2929 D mkcommon : HOSTLD scripts/kconfig/conf
11-05 22:43:16.949 2929 D mkcommon : *** Default configuration is based on '../../../../../device/config/chips/t113_s4/configs/100ask/linux-5.4/config-5.4'
11-05 22:43:17.611 2929 D mkcommon : #
11-05 22:43:17.612 2929 D mkcommon : # configuration written to .config
11-05 22:43:17.613 2929 D mkcommon : #
11-05 22:43:17.616 2929 D mkcommon : make[1]: Leaving directory '/home/ubuntu/t113-tin5-v1.2/out/t113_s4/kernel/build'
11-05 22:43:17.618 2929 D mkcommon : make: Leaving directory '/home/ubuntu/t113-tin5-v1.2/kernel/linux-5.4'
make: Entering directory '/home/ubuntu/t113-tin5-v1.2/buildroot/buildroot-201902'
mkdir -p /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config/lxdialog
PKG_CONFIG_PATH="" make CC="/usr/bin/gcc" HOSTCC="/usr/bin/gcc" \
obj=/home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config -C support/kconfig -f Makefile.br conf
/usr/bin/gcc -D_GNU_SOURCE -D_DEFAULT_SOURCE -I/usr/include/ncursesw -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config -DCONFIG_=\"\" -MM *.c > /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config/.depend 2>/dev/null || :
/usr/bin/gcc -D_GNU_SOURCE -D_DEFAULT_SOURCE -I/usr/include/ncursesw -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config -DCONFIG_=\"\" -c conf.c -o /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config/conf.o
/usr/bin/gcc -D_GNU_SOURCE -D_DEFAULT_SOURCE -I/usr/include/ncursesw -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config -DCONFIG_=\"\" -I. -c /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config/zconf.tab.c -o /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config/zconf.tab.o
/usr/bin/gcc -D_GNU_SOURCE -D_DEFAULT_SOURCE -I/usr/include/ncursesw -DCURSES_LOC="<ncurses.h>" -DNCURSES_WIDECHAR=1 -DLOCALE -I/home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config -DCONFIG_=\"\" /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config/conf.o /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config/zconf.tab.o -o /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config/conf
rm /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/build/buildroot-config/zconf.tab.c
GEN /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/Makefile
../config/buildroot/allwinner/display/gpu_um_pub/Config.in:21:warning: config symbol defined without type
Config.in.legacy:1769:warning: choice value used outside its choice group
#
# configuration written to /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot/buildroot/.config
#
make: Leaving directory '/home/ubuntu/t113-tin5-v1.2/buildroot/buildroot-201902'
11-05 22:43:25.031 2929 I mkcommon : buildroot defconfig is sun8iw20p1_t113_defconfig
11-05 22:43:25.352 2929 I mkcommon : clean buildserver
11-05 22:43:25.353 2929 I mkcommon : prepare_buildserve
配置完成后，可以执行 ./build.sh 开始编译。
ubuntu@ubuntu1804:~/t113-tin5-v1.2$ ./build.sh
11-05 22:46:00.269 6893 D mkcommon : ========ACTION List: build_linuxdev;========
11-05 22:46:00.270 6893 D mkcommon : options :
11-05 22:46:00.271 6893 I mkcommon : ----------------------------------------
11-05 22:46:00.271 6893 I mkcommon : build linuxdev ...
11-05 22:46:00.272 6893 I mkcommon : chip: sun8iw20p1
11-05 22:46:00.273 6893 I mkcommon : platform: linux
11-05 22:46:00.275 6893 I mkcommon : kernel: linux-5.4
11-05 22:46:00.276 6893 I mkcommon : board: 100ask
11-05 22:46:00.277 6893 I mkcommon : output: /home/ubuntu/t113-tin5-v1.2/out/t113_s4/100ask/buildroot
11-05 22:46:00.278 6893 I mkcommon : ----------------------------------------
11-05 22:46:00.288 6893 I mkcommon : build rtos ...
11-05 22:46:00.325 6893 D mkcommon : Setup env done!
11-05 22:46:00.327 6893 D mkcommon : Run lunch_rtos to select project
11-05 22:46:00.360 6893 D mkcommon : last=t113_s4_c906_evb1_auto
11-05 22:46:00.361 6893 D mkcommon : select=t113_s4_c906_evb1_auto...
11-05 22:46:00.362 6893 D mkcommon : t113_s4_c906/evb1_auto
11-05 22:46:00.366 6893 D mkcommon : '/home/ubuntu/t113-tin5-v1.2/rtos/lichee/rtos/projects/t113_s4_c906/evb1_auto/defconfig' -> '/home/ubuntu/t113-tin5-v1.2/rtos/lichee/rtos/.config'
11-05 22:46:00.381 6893 D mkcommon : ============================================
11-05 22:46:00.382 6893 D mkcommon : RTOS_BUILD_TOP=/home/ubuntu/t113-tin5-v1.2/rtos
11-05 22:46:00.383 6893 D mkcommon : RTOS_TARGET_ARCH=riscv
11-05 22:46:00.384 6893 D mkcommon : RTOS_TARGET_CHIP=sun8iw20p1
11-05 22:46:00.385 6893 D mkcommon : RTOS_TARGET_DEVICE=t113_s4_c906
11-05 22:46:00.386 6893 D mkcommon : RTOS_PROJECT_NAME=t113_s4_c906_evb1_auto
11-05 22:46:00.386 6893 D mkcommon : ============================================
11-05 22:46:00.392 6893 D mkcommon : Run mrtos_menuconfig to config rtos
11-05 22:46:00.393 6893 D mkcommon : Run m or mrtos to build rtos
11-05 22:46:00.393 6893 D mkcommon : build rtos ...
11-05 22:46:00.408 6893 D mkcommon : Dark Builder
等待一段时间（约30~90分）具体根据电脑性能而定，编译完成后，在当前目录下，执行以下指令，进行镜像打包，
ubuntu@ubuntu1804:~/t113-tin5-v1.2$ ./build.sh pack
镜像打包完成后，执行 cout 会进入到镜像生成的路径。
